    Sports Perimeter LED Display

    Perimeter LED Display

    The perimeter LED Display design of Shenzhen Soutec LED including two models:

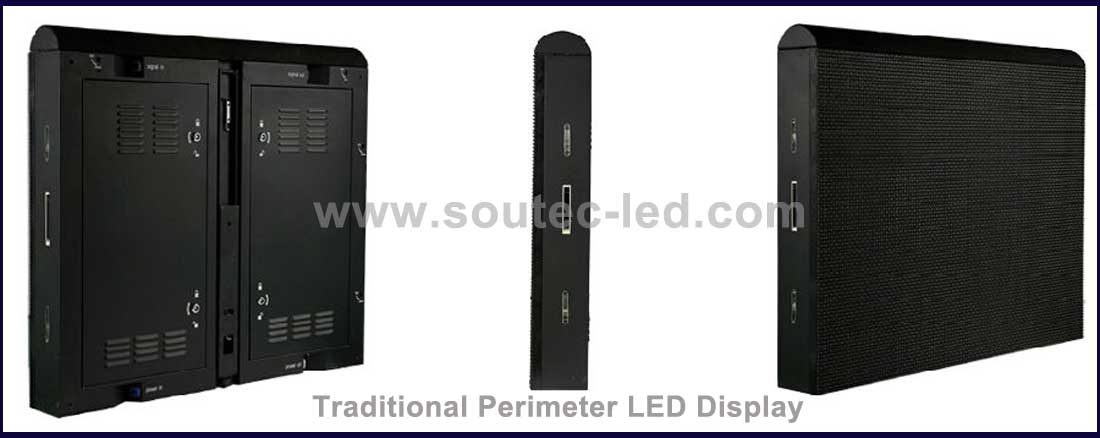

    ★Traditional LED Perimeter Led display Screen

    1,Strong design with Aluminum/steel cabinet

    2,Much heavy,not easy for move and installation

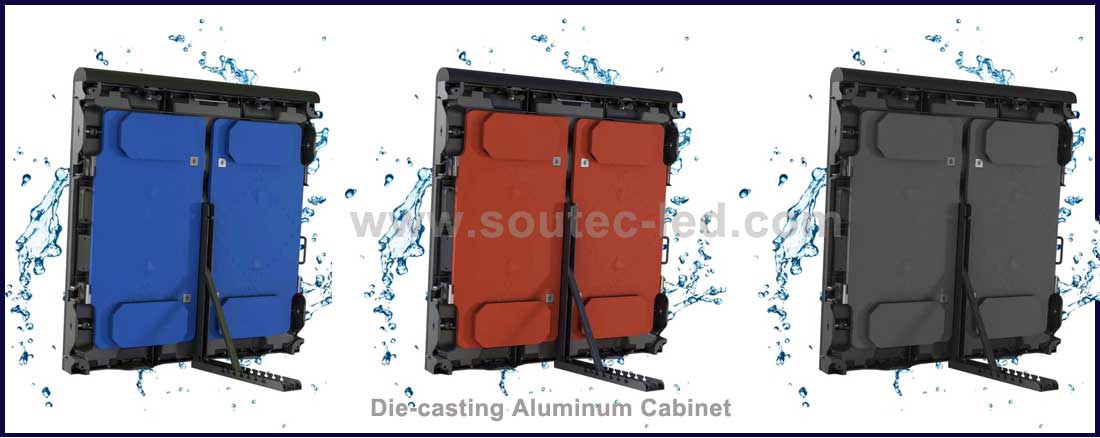

    ★Die-casting Aluminum Sports Stadium Perimeter LED Screen

    1,Ultra Slim,only 100mm thick

    2,Ultra Light,only 35KG/Cabinet,cabinet size:960x960mm

    3,Easy and fast for intatllation

    4,The supporters and the soft bar on top can move off,and can be used for rental led display.



    The cabinet of perimeter led display is designed with a unique changeble angle, and our screen can adjust the inclination angle (75 ° ~ 90 °) of the cabinet according to the different requirements,therefore, all the viewers can see the contents of the grograms.

    ★The screen with a soft mask and the upper cover soft material, both to protect the led lights not be damaged by the ball hit.

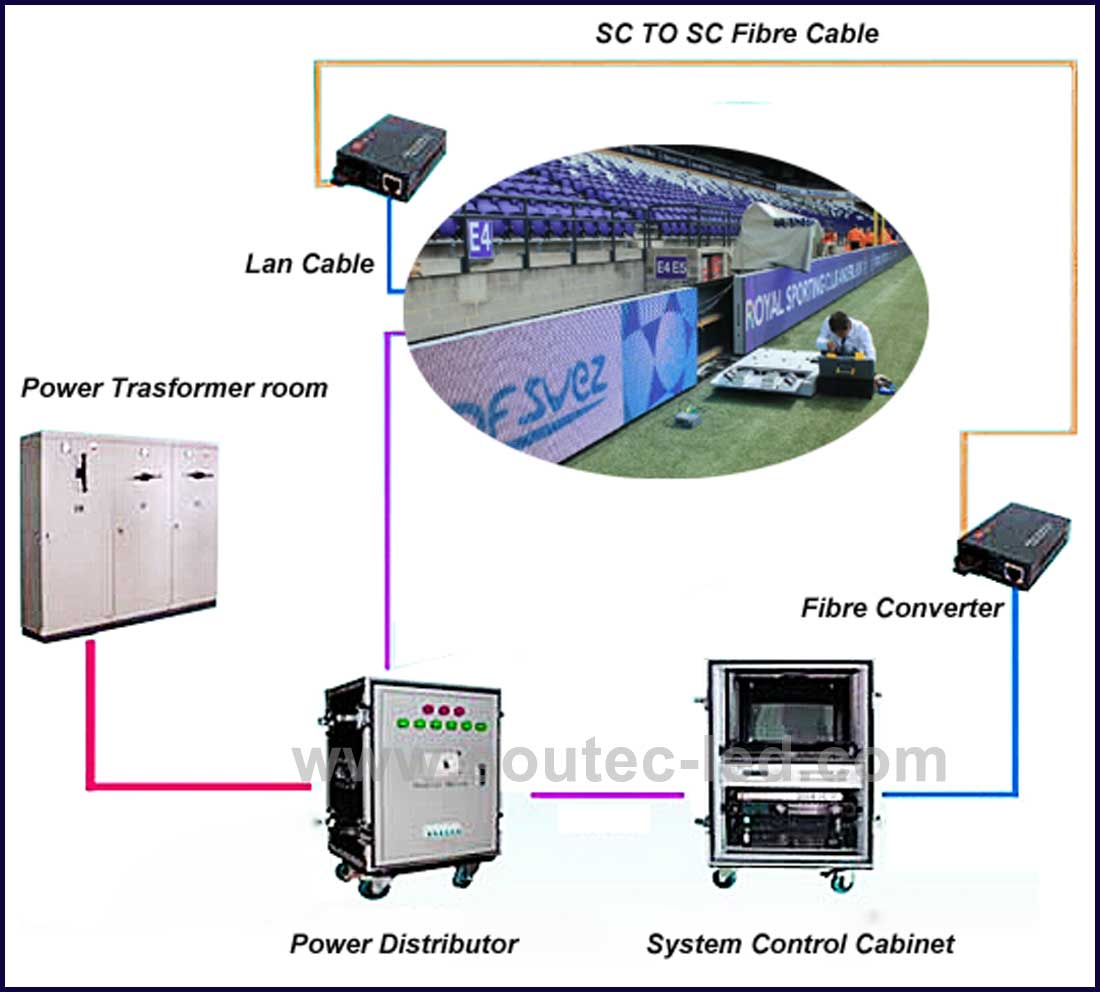

    ★The use of efficient fiber optic transmission system, effectively reducing the distance on the football field transmission signal caused by the phenomenon of delay, to ensure the consistency of the screen play.
    ★With dual network cable hot backup function, two computers at the same time control a screen, when a computer problems, another computer automatically replace, to ensure that the display work properly.
    ★Waterproof effect, with IP65 degree of protection, so that the display in the rainy weather can continue to work for you.
    ★With a dedicated stadium playing software, so you are very easy to score management, program playback, advertising and program table editing
    ★High up to 4800Hz refresh rate to meet the needs of dynamic shooting on the playground, effectively avoid the shooting when the flicker

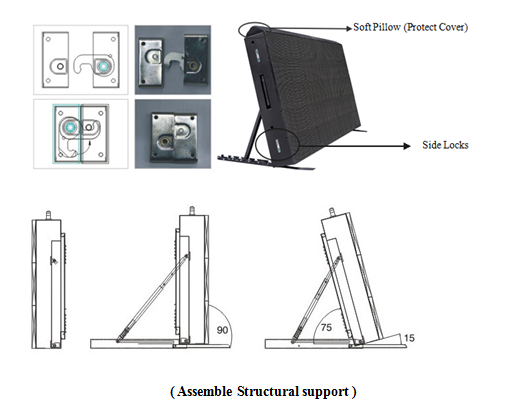

    Cabinet design feature:
    1.  Convenient to install and disassemble
    Our cabinets feature simple designs, making them easy-to-install and disassemble. The cabinets include interlo-cks, as well as external signal and power sockets.
    Perimeter LED Display.png

    2. Adjustable inclination angle
    Generally, the LED perimeter banner display is placed vertically and the inclination angle is adjustable for the best possible viewing and camera shooting angles.

    3,Conrol System
