P1.923 Indoor LED Display

Quick Details

P1.923 Indoor LED Display:

Pixel Pitch:1.923MM

Cabinet Material:Die-casting Aluminum Cabinet

Cabinet size:400X300MM

Refresh rate:1920Hz/3840Hz

Brightness:800NITS

Power Consumption:1000W/M2(MAX)

IC:MBI5124/MBI5153/ICN2037/SM16106

LED:KINGLIGHT LED/NATIONSTAR LED

LED CHIP:SANAN/EPISTAR

Cabinet weight:5.5KG/Cabinet

Control card:Nova Star/Linsn/Huidu/Colorlight

Application:Indoor Rental/Fixed

Features:

▇Fast assemble and dismantle

▇Light weight and super slim

▇High refresh rate:>1920Hz or >3840Hz

▇Anti-ghost line and tailer line design is available

▇Seamless connection

▇Application:Stage,Events,TV Studio,Concerts,Trade Show etc.

P1.923 Full Color LED Screen
Module Parameters		Pixel pitch	1.923mm
		Pixel Density	270400 pixels/m2
		LED Shape	SMD 3in1/SMD1010
		LED Configuration	1R1G1B
		Module Resolution	104*78 pixel
		Module Size	200*150 mm
		Drive Method	1/26 constant current drive
Cabinet Parameters		Cabinet Resoltuion	208*156
		Cabinet Size	400*300 mm
		Cabinet Weight	5.5kg
Display Parameters	Optical	Brightness	≥800 cd/m2
		Viewing angle	H/V 160/160
		Best Viewing Distance	≥2m
		Display Color	16.7 million
		Grey Scale	16bits/65536levels
	Power	Max power consumption	1000 W/m2
		Ave power consumption	400 W/m2
		Working Voltage	220V / 110V
	Control system	Frame Frequency	60--85 HZ
		Refresh Rate	≥1920 HZ or >3840Hz
		Data Transmission	CAT 5/ Optic Fiber
		Image Source	S-Video, PAL/ NTSC
		Controlling system	Linsn, Nova,Huidu,Colorlight
		Format	Video Compatibility DVI, VGA, composite
	Reliability	Working Temperature	-20~65 ℃
		Working Humidity	10-95% RH
		Life Span	100,000 Hours
		MTBF (Ave No Faliure Time)	5000 Hours
		Pixel failing Rate	0.01%
		IP Rate	IP40

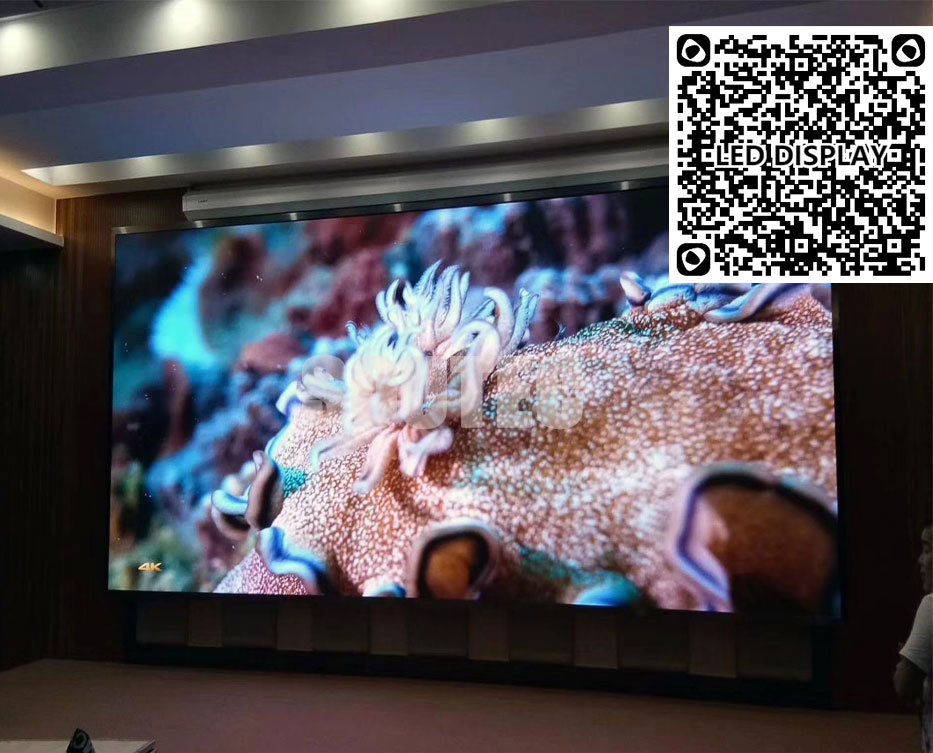

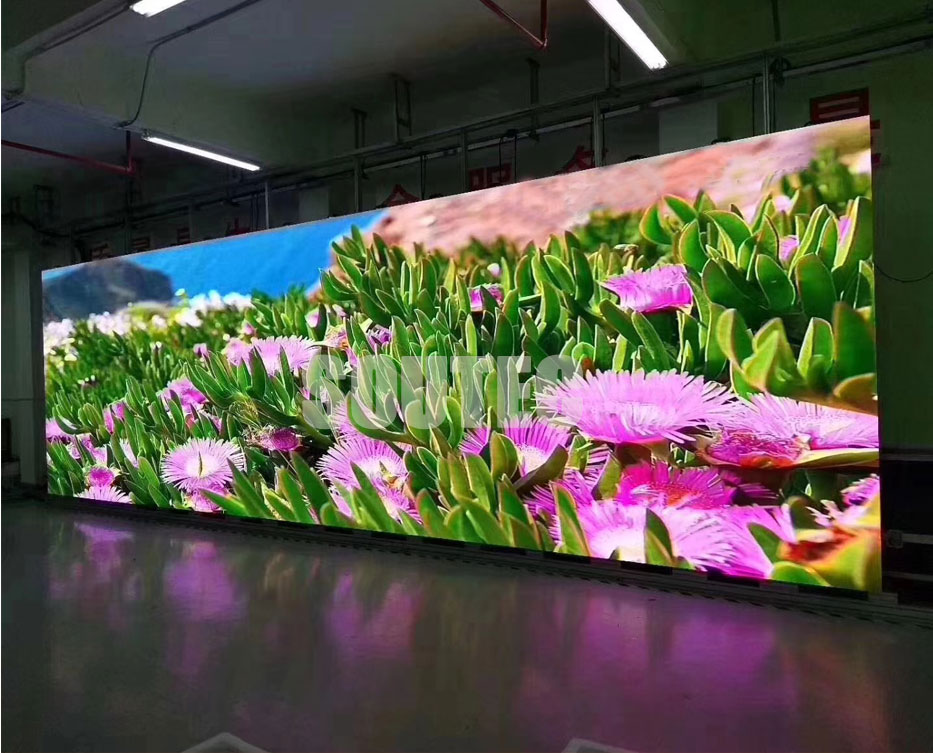

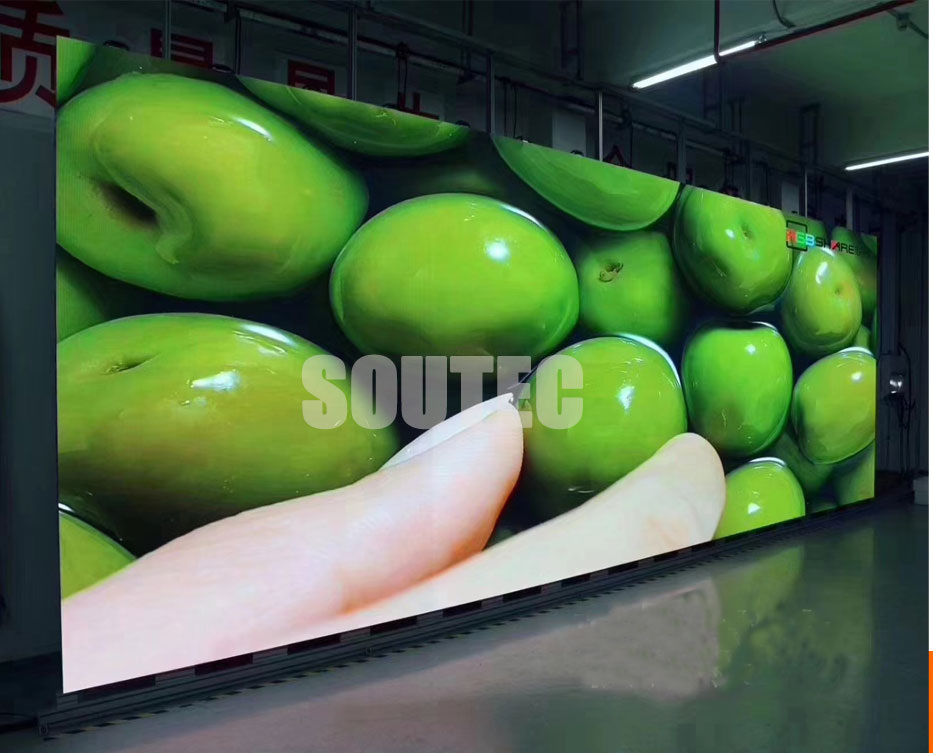

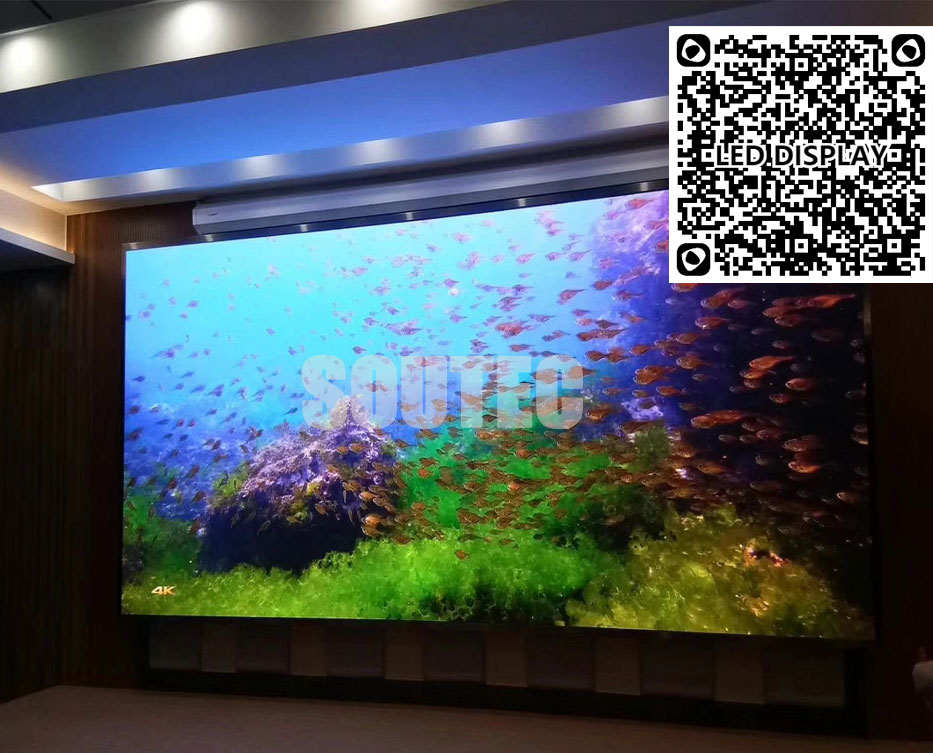

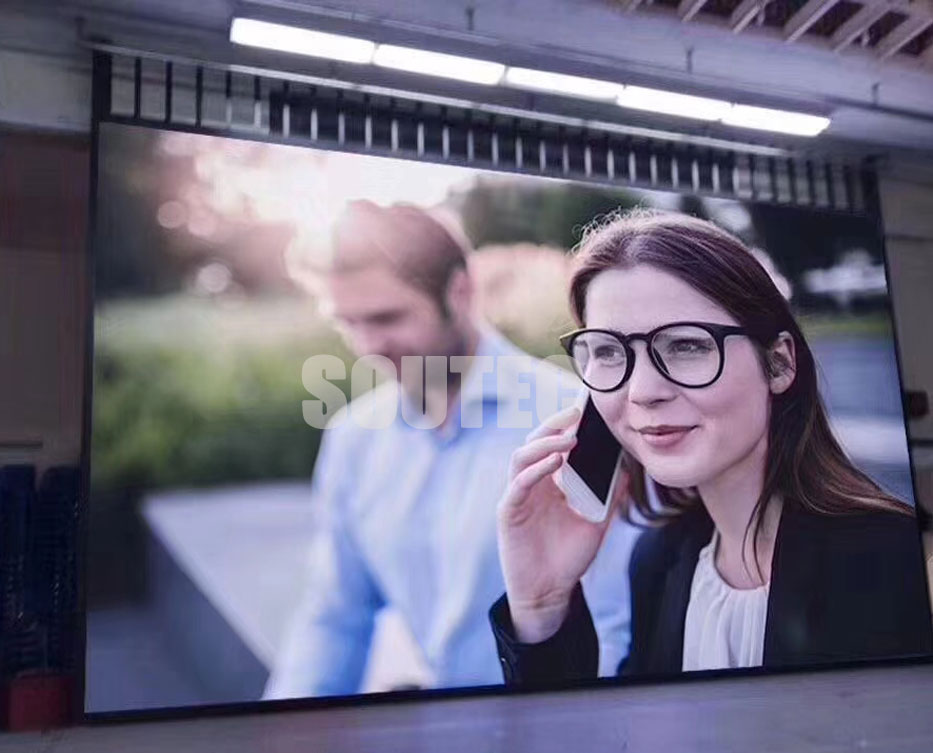

The led display for Soutec LED With Anti-ghost and Tailer Design effect:
