    P1.25 Full Color LED Screen

    Quick Details

    P1.25 Full Color LED Screen:

    Pixel Pitch:1.25MM

    Cabinet Material:Die-casting Aluminum Cabinet

    Cabinet size:400X300MM

    Refresh rate:1920Hz/3840Hz

    Brightness:800NITS

    Power Consumption:1000W/M2(MAX)

    IC:MBI5124/MBI5153/ICN2037/SM16106

    LED:KINGLIGHT LED/NATIONSTAR LED

    LED CHIP:SANAN/EPISTAR

    Cabinet weight:5.5KG/Cabinet

    Control card:Nova Star/Linsn/Huidu/Colorlight

    Application:Indoor Rental/Fixed


    Content

    Features:

    ▇Fast assemble and dismantle

    ▇Light weight and super slim

    ▇High refresh rate:>1920Hz or >3840Hz

    ▇Anti-ghost line and tailer line design is available

    ▇Seamless connection

    ▇Application:Stage,Events,TV Studio,Concerts,Trade Show etc.


    P1.25 Full Color LED Screen
    Module ParametersPixel pitch1.25mm
    Pixel Density640000pixels/m2
    LED ShapeSMD 3in1/SMD1010
    LED Configuration1R1G1B
    Module Resolution160*120 pixel
    Module Size200*150 mm
    Drive Method1/30 constant current drive
    Cabinet ParametersCabinet Resoltuion320*240
    Cabinet Size400*300 mm
    Cabinet Weight5.5kg
    Display ParametersOpticalBrightness≥800 cd/m2
    Viewing angleH/V 160/160
    Best Viewing Distance≥2m
    Display Color16.7 million
    Grey Scale16bits/65536levels
    PowerMax power consumption1000 W/m2
    Ave power consumption400 W/m2
    Working Voltage220V / 110V
    Control systemFrame Frequency60--85 HZ
    Refresh Rate≥1920 HZ or >3840Hz
    Data TransmissionCAT 5/ Optic Fiber
    Image SourceS-Video, PAL/ NTSC
    Controlling systemLinsn, Nova,Huidu,Colorlight
    FormatVideo Compatibility DVI, VGA, composite
    ReliabilityWorking Temperature-20~65 ℃
    Working Humidity10-95% RH
    Life Span100,000 Hours
    MTBF (Ave No Faliure Time)5000 Hours
    Pixel failing Rate0.01%
    IP RateIP40

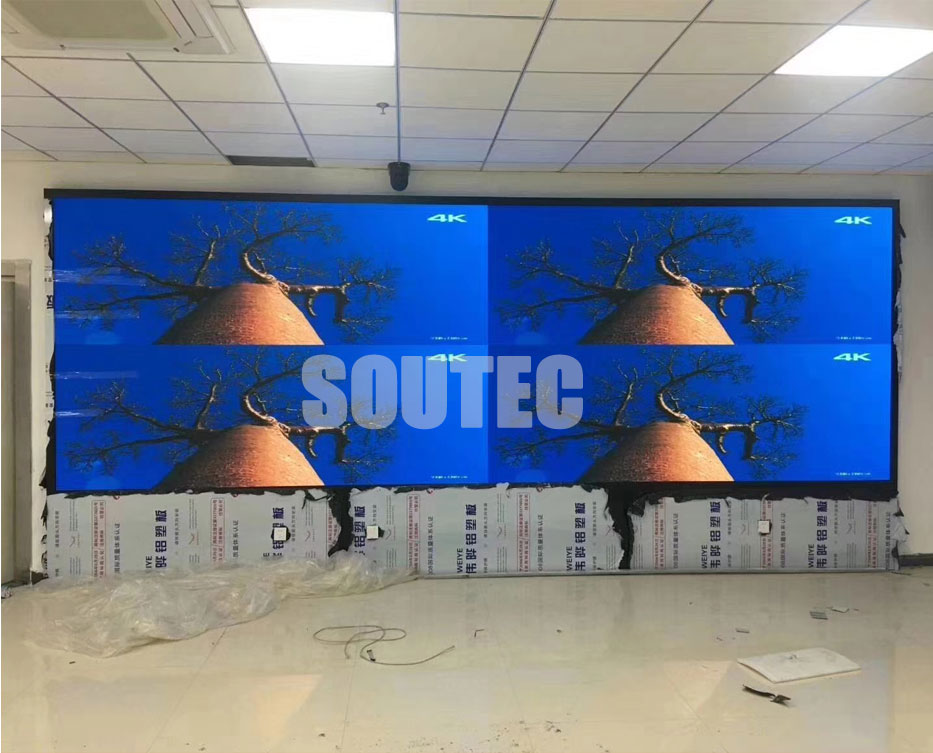

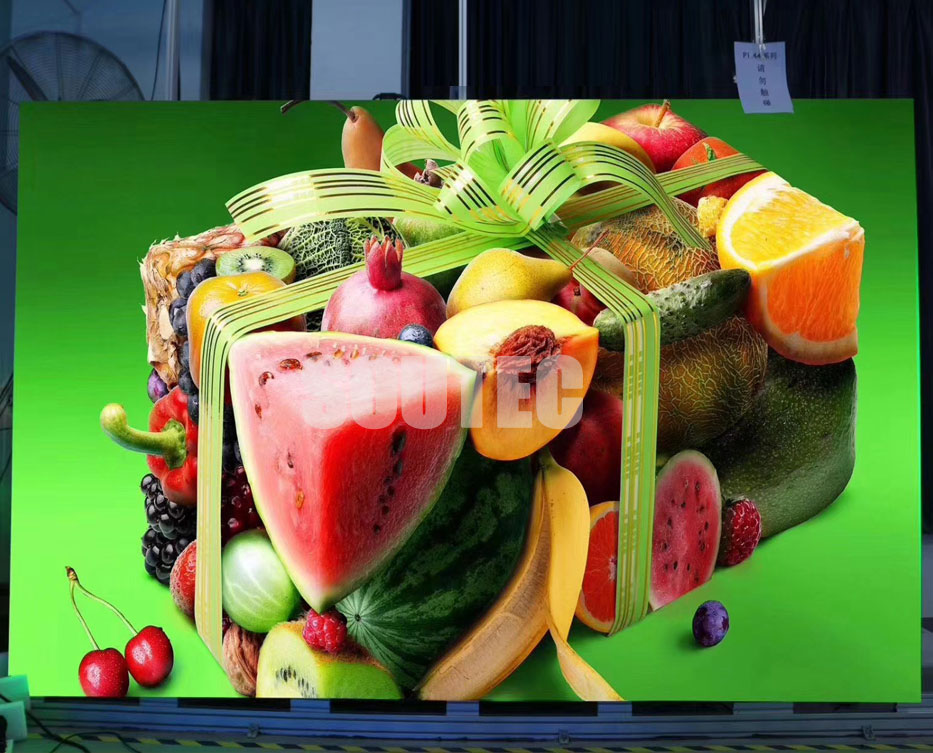

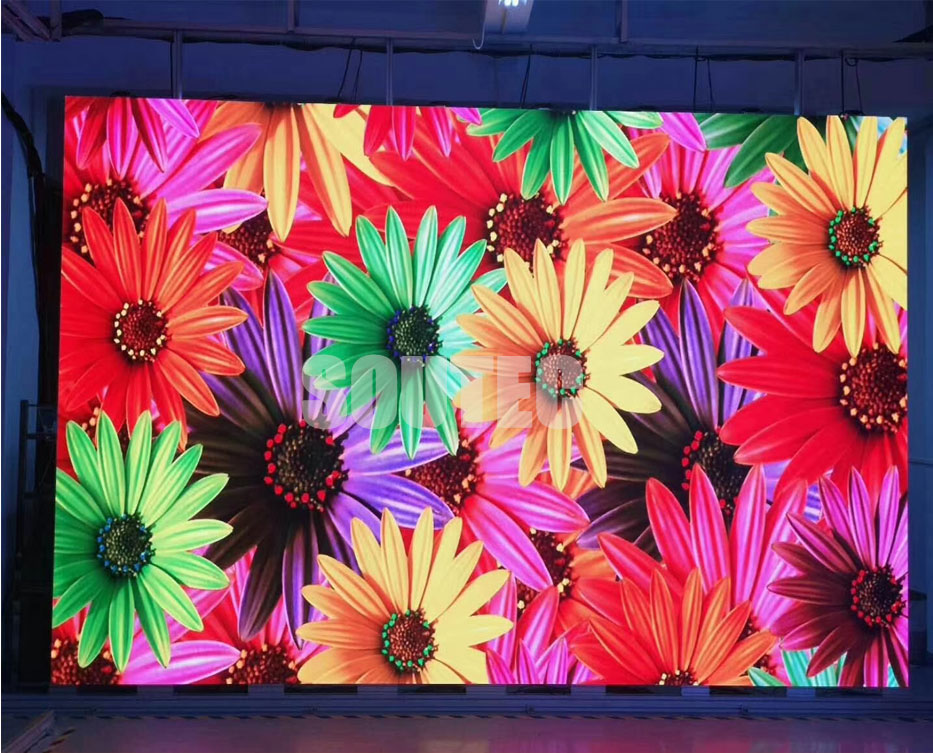

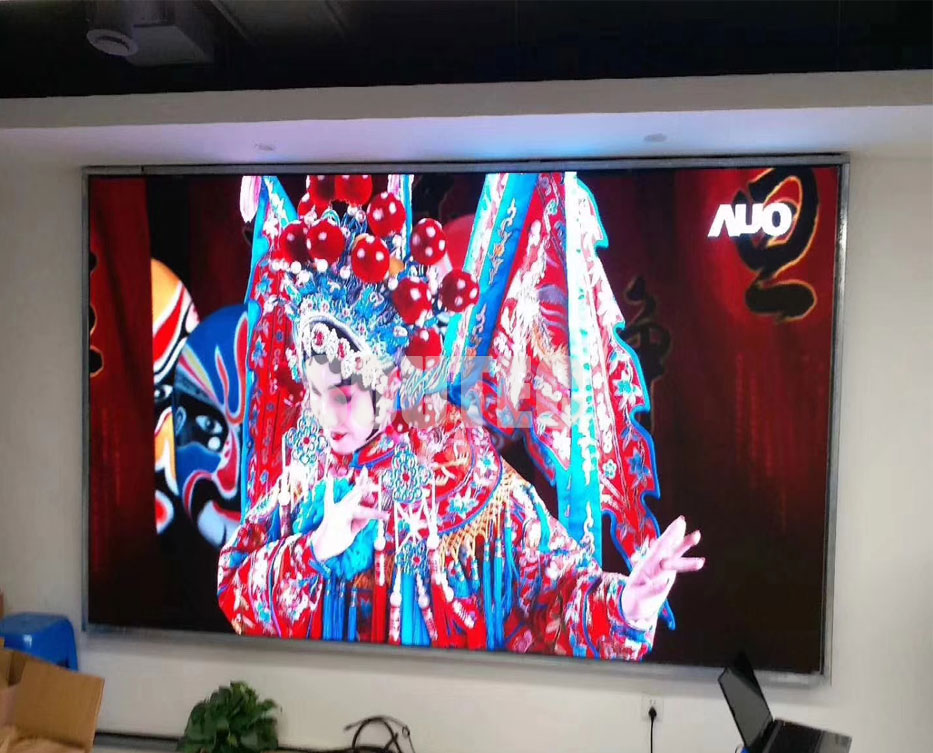

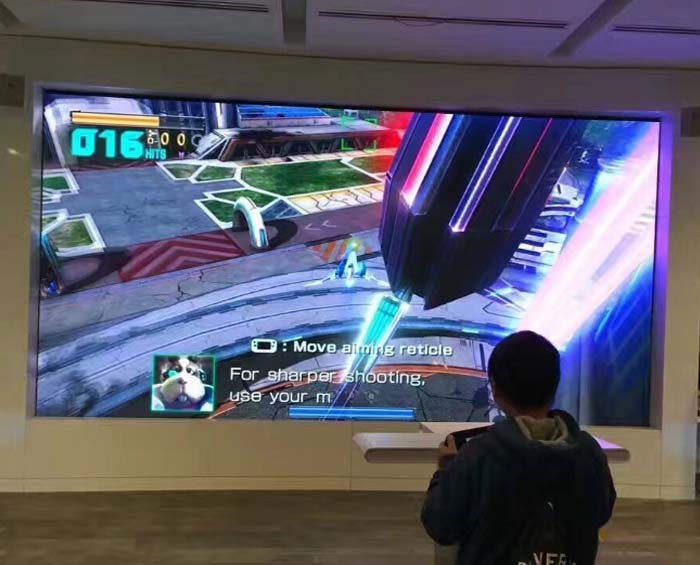

    The led display for Soutec LED With Anti-ghost and Tailer Design effect:
