    960X960MM P5 Outdoor LED Screen

    Quick Details

    960X960MM P5 Outdoor LED Screen:

    Pixel Pitch:5MM

    Cabinet Material:Die-casting Aluminum Cabinet

    Cabinet size:960X960MM

    Refresh rate:1920Hz/3840Hz

    Brightness:5500NITS

    Power Consumption:800W/M2(MAX)

    IC:MBI5124/MBI5153/ICN2037/SM16106

    LED:KINGLIGHT LED/NATIONSTAR LED

    LED CHIP:SANAN/EPISTAR

    Cabinet weight:30KG/Cabinet

    Control card:Nova Star/Linsn/Huidu/Colorlight

    Application:Outdoor Rental/Fixed


    Content


    Features:

    ▇Die-casting Aluminum Cabinet

    ▇Fast assemble and dismantle

    ▇Light weight and super slim

    ▇High refresh rate:>1920Hz

    ▇Anti-ghost line and tailer line design is available

    ▇Seamless connection

    ▇Application:Adverting,Stage,Events,TV Studio,Concerts,Trade Show etc.

    ▇Installation:Stand on ground,Fixed to the wall,Hanging



    960X960MM P5 Outdoor LED Screen---Die-casting Aluminum Cabinet:

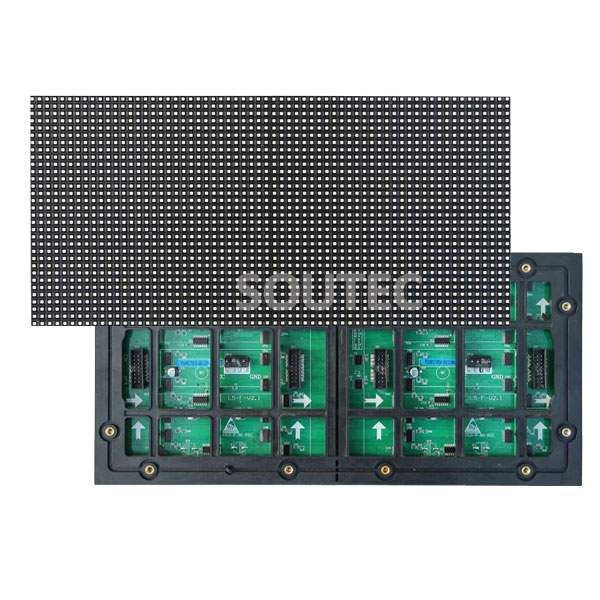

    Module ParametersPixel pitch5mm
    Pixel Density40000pixels/m2
    LED ShapeSMD 3in1/SMD2727
    LED Configuration1R1G1B
    Module Resolution64*32 pixel
    Module Size320X160MM
    Drive Method1/8 constant current drive














    Cabinet ParametersCabinet Resoltuion192x192pixel
    Cabinet Size960x960mm
    Cabinet Weight30kg/Cabinet
    Display ParametersOpticalBrightness≥5500 cd/m2
    Viewing angleH/V 160/160
    Best Viewing Distance≥7 m
    Display Color16.7 million
    Grey Scale16bits/65536levels
    PowerMax power consumption800 W/m2
    Ave power consumption400 W/m2
    Working Voltage220V / 110V
    Control systemFrame Frequency60--85 HZ
    Refresh Rate≥1920 HZ
    Data TransmissionCAT 5/ Optic Fiber
    Image SourceS-Video, PAL/ NTSC
    Controlling systemLinsn, Nova,Huidu,Colorlight
    FormatVideo Compatibility DVI, VGA, composite
    ReliabilityWorking Temperature-20~65 ℃
    Working Humidity10-95% RH
    Life Span100,000 Hours
    MTBF (Ave No Faliure Time)5000 Hours
    Pixel failing Rate0.01%
    IP RateIP65(Front)/IP54(Back)























































    The led display for Soutec LED With Anti-ghost and Tailer Design effect:
