    P8 Outdoor Advertising LED Display

    Quick Details

    P8 Outdoor Advertising LED Display:

    Pixel Pitch:8MM

    Cabinet Material:Iron/Aluminum Cabinet

    Cabinet size:Customized

    Refresh rate:1920Hz/3840Hz

    Brightness:5500NITS

    Power Consumption:800W/M2(MAX)

    IC:MBI5124/MBI5153/ICN2037/SM16106

    LED:KINGLIGHT LED/NATIONSTAR LED

    LED CHIP:SANAN/EPISTAR

    Cabinet weight:Depends on cabinet size

    Control card:Nova Star/Linsn/Huidu/Colorlight

    Application:Outdoor Fixed


    Content

    Features:

    ▇High Brightness

    ▇Energy Saving LED Screen is available

    ▇Excellent display effect

    ▇High Refresh Rate

    ▇Waterproof design:IP65


    P8 Outdoor Advertising LED Display:
    Module ParametersPixel pitch8mm
    Pixel Density15625pixels/m2
    LED ShapeSMD 3in1/SMD3535
    LED Configuration1R1G1B
    Module Resolution32*16pixel/40X20Pixel
    Module Size256*128 mm/320x160MM
    Drive Method1/4(1/5) constant current drive

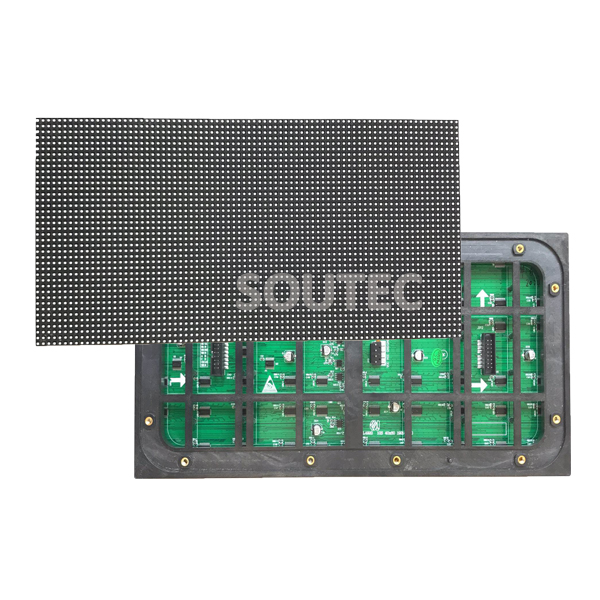

    P4 320x160mm.jpg

    Cabinet ParametersCabinet Resoltuion128x96pixel or 120x120pixel or Customised
    Cabinet Size1024x768MM or 960x960mm or Customised
    Cabinet Weight50kg/M2
    Display ParametersOpticalBrightness≥5500 cd/m2
    Viewing angleH/V 160/160
    Best Viewing Distance≥8 m
    Display Color16.7 million
    Grey Scale16bits/65536levels
    PowerMax power consumption800 W/m2
    Ave power consumption400 W/m2
    Working Voltage220V / 110V
    Control systemFrame Frequency60--85 HZ
    Refresh Rate≥1920 HZ
    Data TransmissionCAT 5/ Optic Fiber
    Image SourceS-Video, PAL/ NTSC
    Controlling systemLinsn, Nova,Huidu,Colorlight
    FormatVideo Compatibility DVI, VGA, composite
    ReliabilityWorking Temperature-20~65 ℃
    Working Humidity10-95% RH
    Life Span100,000 Hours
    MTBF (Ave No Faliure Time)5000 Hours
    Pixel failing Rate0.01%
    IP RateIP65(Front)/IP54(Back)























































    The led display for Soutec LED With Anti-ghost and Tailer Design effect:
