P6 Outdoor LED Video Wall

Quick Details

P6 Outdoor LED Video Wall:

Pixel Pitch:6MM

Cabinet Material:Iron cabinet

Cabinet size:Customised

Refresh rate:1920Hz/3840Hz

Brightness:5500NITS

Power Consumption:800W/M2(MAX)

IC:MBI5124/MBI5153/ICN2037/SM16106

LED:KINGLIGHT LED/NATIONSTAR LED

LED CHIP:SANAN/EPISTAR

Cabinet weight:Depends on cabinet size

Control card:Nova Star/Linsn/Huidu/Colorlight

Application:Outdoor FIXED

Features:

▇High Brightness

▇Energy Saving LED Screen is available

▇Excellent display effect

▇High Refresh Rate

▇Waterproof design:IP65

P6 Outdoor LED Video Wall:
Module Parameters		Pixel pitch	6mm
		Pixel Density	27777pixels/m2
		LED Shape	SMD 3in1/SMD2727
		LED Configuration	1R1G1B

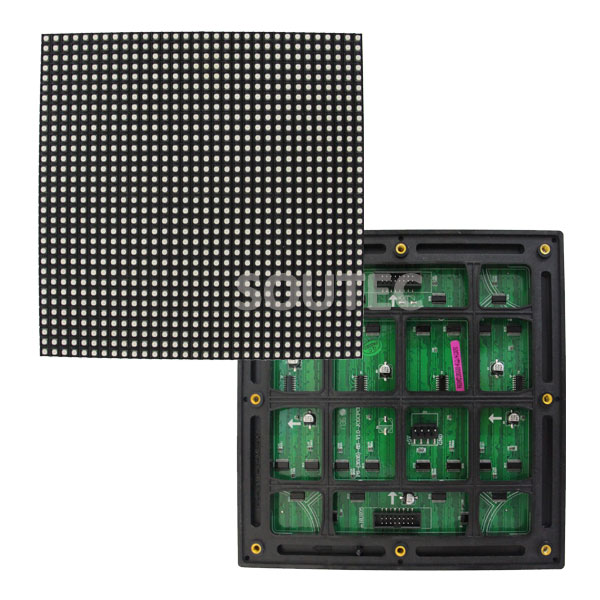

		Module Resolution	32*32 pixel
		Module Size	192*192 mm
		Drive Method	1/8 constant current drive
Cabinet Parameters		Cabinet Resoltuion	160x160pixel or Customised
		Cabinet Size	960x960mm or Customised
		Cabinet Weight	50kg/M2
Display Parameters	Optical	Brightness	≥5500 cd/m2
		Viewing angle	H/V 160/160
		Best Viewing Distance	≥8 m
		Display Color	16.7 million
		Grey Scale	16bits/65536levels
	Power	Max power consumption	800 W/m2
		Ave power consumption	400 W/m2
		Working Voltage	220V / 110V
	Control system	Frame Frequency	60--85 HZ
		Refresh Rate	≥1920 HZ
		Data Transmission	CAT 5/ Optic Fiber
		Image Source	S-Video, PAL/ NTSC
		Controlling system	Linsn, Nova,Huidu,Colorlight
		Format	Video Compatibility DVI, VGA, composite
	Reliability	Working Temperature	-20~65 ℃
		Working Humidity	10-95% RH
		Life Span	100,000 Hours
		MTBF (Ave No Faliure Time)	5000 Hours
		Pixel failing Rate	0.01%
		IP Rate	IP65(Front)/IP54(Back)

The led display for Soutec LED With Anti-ghost and Tailer Design effect:
