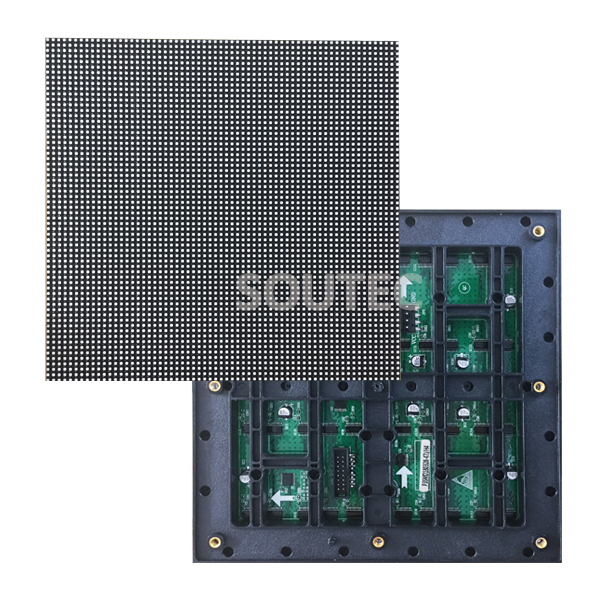

    P3 Outdoor HD LED Screen

    Quick Details

    P3 Outdoor HD LED Screen:

    Pixel Pitch:3MM

    Cabinet Material:Iron cabinet

    Cabinet size:Customised

    Refresh rate:1920Hz/3840Hz

    Brightness:6000NITS

    Power Consumption:800W/M2(MAX)

    IC:MBI5124/MBI5153/ICN2037/SM16106

    LED:KINGLIGHT LED/NATIONSTAR LED

    LED CHIP:SANAN/EPISTAR

    Cabinet weight:Depends on cabinet size

    Control card:Nova Star/Linsn/Huidu/Colorlight

    Application:Outdoor FIXED


    Content

    Features:

    ▇High Brightness

    ▇Energy Saving LED Screen is available

    ▇Excellent display effect

    ▇High Refresh Rate

    ▇Waterproof design:IP65


    P3 Outdoor HD LED Screen
    Module ParametersPixel pitch3 mm
    Pixel Density111111pixels/m2
    LED ShapeSMD 3in1/SMD1921
    LED Configuration1R1G1B
    Module Resolution64*64 pixel
    Module Size192*192 mm
    Drive Method1/16 constant current drive












    Cabinet ParametersCabinet Resoltuion192x192pixel or Customised
    Cabinet Size576x576mm or Customised
    Cabinet Weight50kg/M2
    Display ParametersOpticalBrightness≥6000 cd/m2
    Viewing angleH/V 160/160
    Best Viewing Distance≥5 m
    Display Color16.7 million
    Grey Scale16bits/65536levels
    PowerMax power consumption800 W/m2
    Ave power consumption400 W/m2
    Working Voltage220V / 110V
    Control systemFrame Frequency60--85 HZ
    Refresh Rate≥1920 HZ
    Data TransmissionCAT 5/ Optic Fiber
    Image SourceS-Video, PAL/ NTSC
    Controlling systemLinsn, Nova,Huidu,Colorlight
    FormatVideo Compatibility DVI, VGA, composite
    ReliabilityWorking Temperature-20~65 ℃
    Working Humidity10-95% RH
    Life Span100,000 Hours
    MTBF (Ave No Faliure Time)5000 Hours
    Pixel failing Rate0.01%
    IP RateIP65(Front)/IP54(Back)

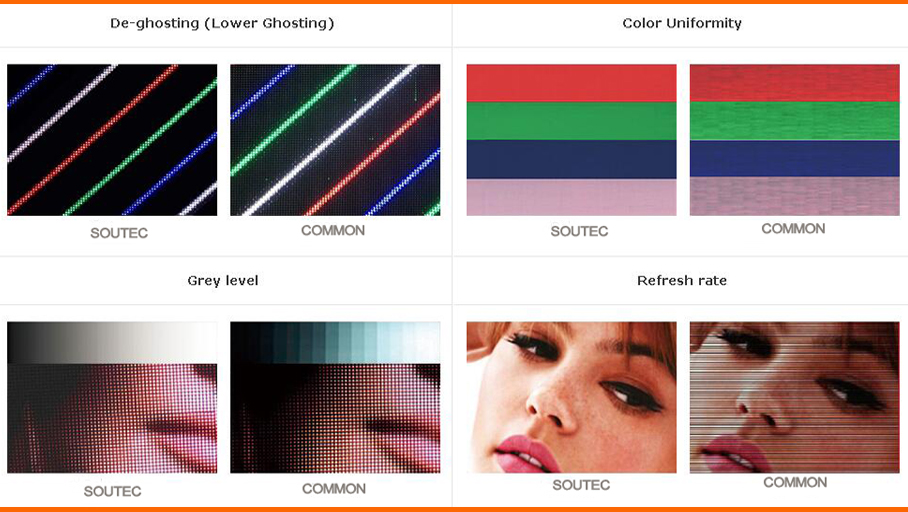

    The led display for Soutec LED With Anti-ghost and Tailer Design effect:
