    P3 Fixed Installation LED Display

    Quick Details

    P3 Fixed Installation LED Display:

    Pixel Pitch:3MM

    Cabinet Material:Die-casting Aluminum Cabinet/Iron

    Cabinet size:576X576MM or Customised

    Refresh rate:1920Hz/3840Hz

    Brightness:1500NITS

    Power Consumption:700W/M2(MAX)

    IC:MBI5124/MBI5153/ICN2037/SM16106

    LED:KINGLIGHT LED/NATIONSTAR LED

    LED CHIP:SANAN/EPISTAR

    Cabinet weight:Depends on cabinet size and material

    Control card:Nova Star/Linsn/Huidu/Colorlight

    Application:Indoor Fixed


    Content

    Features:

    ▇Indoor High Defination

    ▇LED Screen size is customised

    ▇High refresh rate:>1920Hz

    ▇Anti-ghost line and tailer line design is available

    ▇Die-casting Aluminum and Iron cabinet available

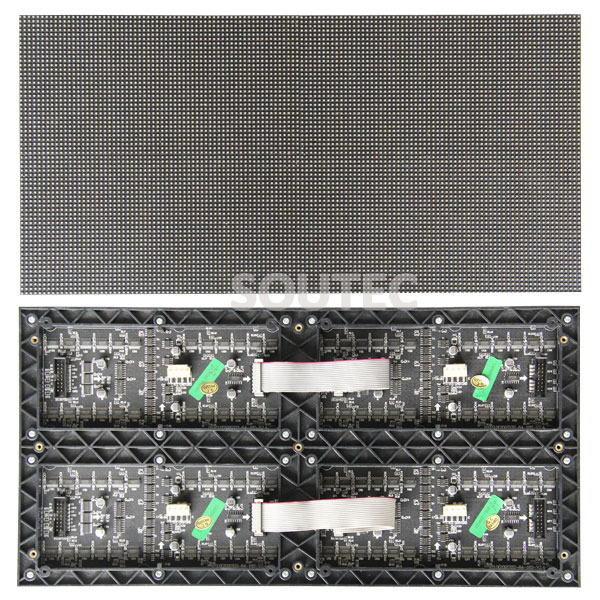

    P3 Fixed Installation LED Display
    Module ParametersPixel pitch3mm
    Pixel Density1111111 pixels/m2
    LED ShapeSMD 3in1/SMD2121
    LED Configuration1R1G1B
    Module Resolution64x32 pixel
    Module Size192*96 mm
    Drive Method1/16 constant current drive












    Cabinet ParametersCabinet Resoltuion192*192
    Cabinet Size576*576 mm or customises
    Cabinet Weight9kg(Iron cabinet:50KG/M2)
    Display ParametersOpticalBrightness≥1500 cd/m2
    Viewing angleH/V 160/160
    Best Viewing Distance≥5m
    Display Color16.7 million
    Grey Scale16bits/65536levels
    PowerMax power consumption700 W/m2
    Ave power consumption250 W/m2
    Working Voltage220V / 110V
    Control systemFrame Frequency60--85 HZ
    Refresh Rate≥1920 HZ
    Data TransmissionCAT 5/ Optic Fiber
    Image SourceS-Video, PAL/ NTSC
    Controlling systemLinsn, Nova,Huidu,Colorlight
    FormatVideo Compatibility DVI, VGA, composite
    ReliabilityWorking Temperature-20~65 ℃
    Working Humidity10-95% RH
    Life Span100,000 Hours
    MTBF (Ave No Faliure Time)5000 Hours
    Pixel failing Rate0.01%
    IP RateIP40























































    The led display for Soutec LED With Anti-ghost and Tailer Design effect:
