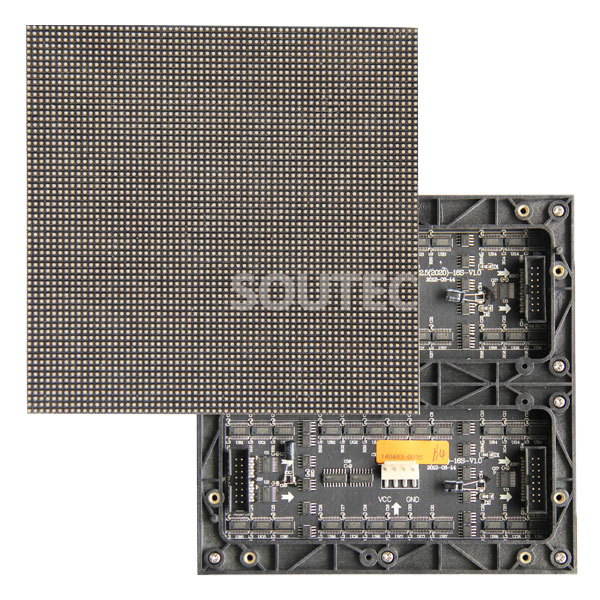

    P2.5 Indoor Fixed LED Display

    Quick Details

    P2.5 INDOOR FIXED LED DISPLAY:

    Pixel Pitch:2.5MM

    Cabinet Material:Die-casting Aluminum Cabinet/Iron

    Cabinet size:480X480MM or Customised

    Refresh rate:1920Hz/3840Hz

    Brightness:1000NITS

    Power Consumption:1000W/M2(MAX)

    IC:MBI5124/MBI5153/ICN2037/SM16106

    LED:KINGLIGHT LED/NATIONSTAR LED

    LED CHIP:SANAN/EPISTAR

    Cabinet weight:Depends on cabinet size and material

    Control card:Nova Star/Linsn/Huidu/Colorlight

    Application:Indoor Fixed


    Content

    Features:

    ▇Indoor High Defination

    ▇LED Screen size is customised

    ▇High refresh rate:>1920Hz

    ▇Anti-ghost line and tailer line design is available

    ▇Die-casting Aluminum and Iron cabinet available


    P2.5 INDOOR FIXED LED DISPLAY
    Module ParametersPixel pitch2.5 mm
    Pixel Density160000 pixels/m2
    LED ShapeSMD 3in1/SMD2121
    LED Configuration1R1G1B
    Module Resolution96*96 pixel
    Module Size240*240 mm
    Drive Method1/16 constant current drive












    Cabinet ParametersCabinet Resoltuion192*192
    Cabinet Size480*480 mm or customised
    Cabinet Weight7.5kg/480X480MM(Iron cabinet:50KG/M2)
    Display ParametersOpticalBrightness≥1000 cd/m2
    Viewing angleH/V 160/160
    Best Viewing Distance≥4 m
    Display Color16.7 million
    Grey Scale16bits/65536levels
    PowerMax power consumption1000 W/m2
    Ave power consumption400 W/m2
    Working Voltage220V / 110V
    Control systemFrame Frequency60--85 HZ
    Refresh Rate≥1920 HZ
    Data TransmissionCAT 5/ Optic Fiber
    Image SourceS-Video, PAL/ NTSC
    Controlling systemLinsn, Nova,Huidu,Colorlight
    FormatVideo Compatibility DVI, VGA, composite
    ReliabilityWorking Temperature-20~65 ℃
    Working Humidity10-95% RH
    Life Span100,000 Hours
    MTBF (Ave No Faliure Time)5000 Hours
    Pixel failing Rate0.01%
    IP RateIP40























































    The led display for Soutec LED With Anti-ghost and Tailer Design effect:
